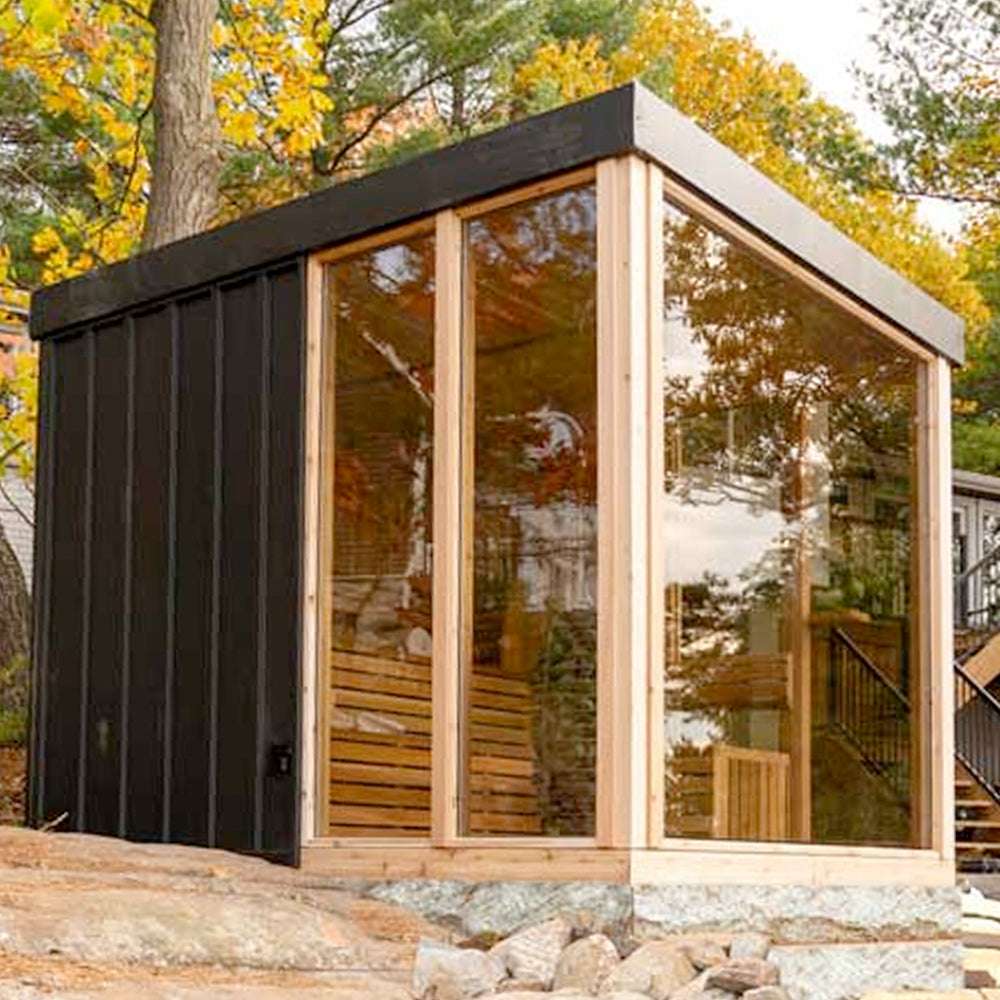

Knotty Cedar Orion Sauna
Orion Villa Wood Siding Sauna
Orion Sauna Side View
Orion Sauna by the Lake
Orion Sauna with Huum Electric Heater

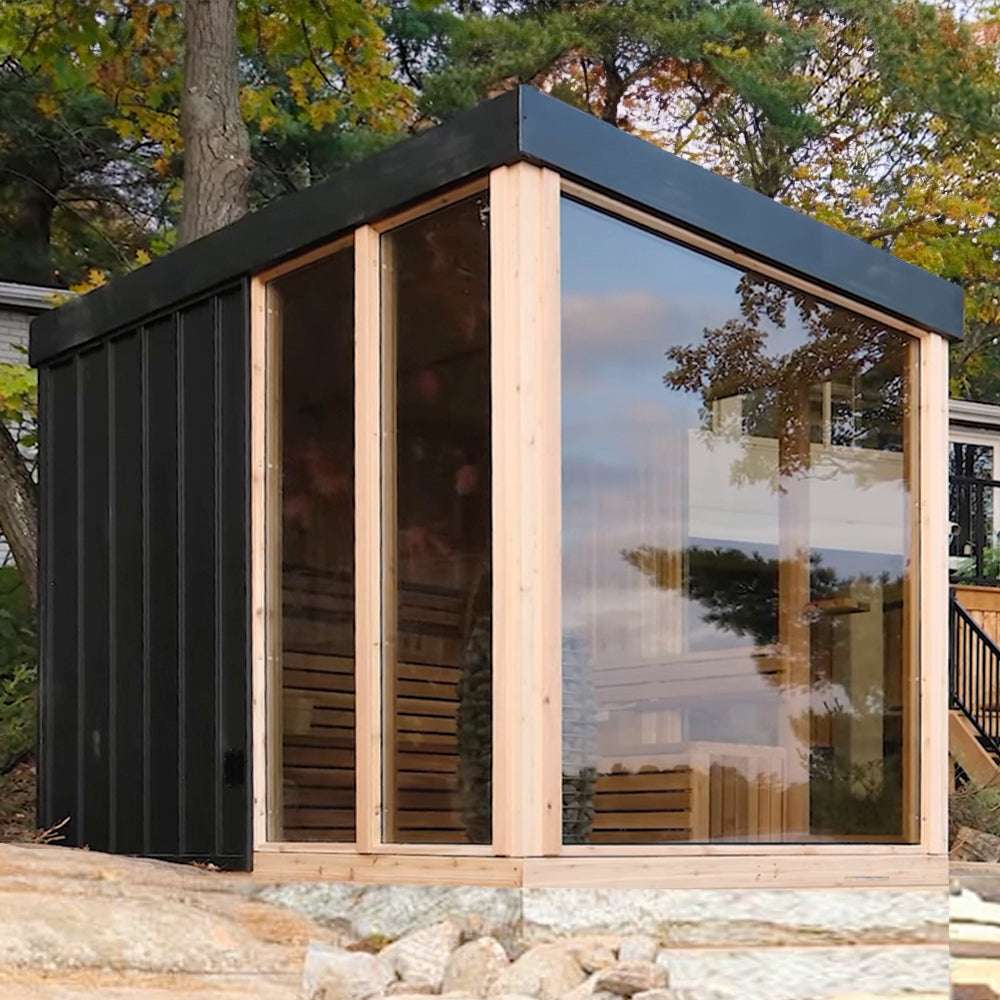

Orion Sauna with Black Metal Siding
Orion Sauna with Huum Mini Electric Heater
Orion Sauna Side View
Revive Electric Heater in Orion Sauna
Orion Sauna Dimensions
Orion Sauna Dimensions Front
Orion Sauna Side Dimensions
Orion Sauna
Huum Hive Electric Heater
Revive Electric Sauna Heater
Orion Sauna Benches
Sand Timer For Sauna
Exterior Light with Cover
Interior Light with Cover and Thermostat
Log Furniture and More Sauna Accessories
Sauna Thermometer
Set of Sauna Elite Backrests

Orion Outdoor Cedar Sauna with Insulation

from
$14,739.00
$17,120.00
$14,739.00
Title: Default Title
from
$14,739.00
$17,120.00
$14,739.00
SKU: OR6112
Rated 4.9 Stars on Google Satisfaction Guaranteed One Tree Planted Per Order

YOUR CUSTOMIZED ORION SAUNA

The insulated Orion Sauna is a stunning modern design with huge windows that can provide amazing lighting and views on your property. Handcrafted, the Orion is built to impress, and to last.

Unique Features

[100% CANADIAN MADE] Our saunas are crafted with pride from 100% Canadian wood, locally sourced and expertly shaped by Canadian woodworkers and artisans. Experience superior quality and craftsmanship in every detail, celebrating Canada's rich woodworking heritage.

[SOLID SINGLE STAVE WOOD BEVELS] Crafted exclusively from premium Grade-A Solid Cedar, our saunas feature seamless construction without tenon joints along their length, ensuring durability and a beautifully detailed design. We commit to using only the finest materials, never compromising on the quality of our wood.

[FULLY INSULATED FLOORS, WALLS, AND ROOF] 3” EPS foam with an R-value of 11.25 helps to keep the sauna hot for longer and get to its maximum heat faster. Our foam is locally sourced, recyclable, and meets LEED criteria.

[CHOOSE YOUR SIDING] You have the option to select either the 28 Gauge Steel siding, or the Knotty Cedar Villa siding. Both of these offer a stunning and unique, modern touch to your sauna.

[WOOD RESISTANT TO ROT, DECAY, AND INSECTS] Our 100% Canadian cedar is made for the Canadian environment. Made for the outdoors, our saunas can withstand harsh Canadian winters and hot Canadian summers.

[ENVIRONMENTALLY FRIENDLY] Sourced from certified sustainable lumber mills in British Columbia and Ontario, our wood is chosen with both durability and environmental stewardship in mind. You can feel good about your choice, knowing that you’re investing in a long-lasting product that supports sustainable forestry practices.

[PEACE OF MIND WITH OUR WARRANTY] Your Orion sauna comes with a robust warranty, guaranteeing protection against defects. We are confident that this will be the last sauna you'll ever need. Knotty and Clear Red Cedar Saunas come with a 5-year warranty. All of our heaters come with a minimum manufacturer’s 2-year residential warranty.

[EASY ASSEMBLY] We designed this sauna with you in mind, ensuring that it is straightforward and easy to assemble. We have several assembly videos and PDFs for each feature.

[EASY MAINTENANCE] When the wood is of this quality, maintaining your sauna becomes effortlessly simple.

COMPARE MODELS Neptune Sauna Orion Sauna
Exterior Sauna Depth (from door to back wall) 89” 85.75”
Exterior Sauna Width Roof: 116”
Sauna: 113”
Roof: 119.5”
Sauna: 115”
Exterior Sauna Height 89.5” 91”
Interior Sauna Depth (from door to back wall) 74” 77.5”
Interior Sauna Width 103.25” 107”
Interior Sauna Height 78” 83.5”
Interior Sauna Volume 344 ft³ 400 ft³
Sauna Shipping dimensions (crate) 120 x 45 x 86 120 x 45 x 86
Sauna Shipping weight with heater & rocks ~ 2320 lbs ~ 2410 lbs
Recommended electric sauna heater strength 9kw 10.5kw
Dimensions Drawing
  • Sauna ships as a kit to be built on-site.
  • All sauna deliveries are made by appointment. The delivery company will call you in advance to make sure you are able to receive it. This item ships to you for free.
  • If you are within 3 hours of Toronto, we can install on site for a fee (selected above)

SHIPPING & ASSEMBLY

What kind of platform do I need to have prepared to be ready for my sauna installation?

Your sauna platform will need to be at least as big as the sauna footprint you selected. The easiest and most common way to make a flat platform for your sauna is crushed gravel that is packed (a shovel will work to pack it, no need for heavy machinery). A flat platform for your sauna could also be a deck or a dock, tiles, or stone. It doesn’t have to be perfect, but please make sure that it is off of the grass, dirt, or earth, and that the platform is relatively even so that your sauna can be stable.


How do I prepare for my electric sauna?

Before your sauna arrives, make sure you have enough power in your circuit to operate your sauna. If you don’t, you may have to upgrade your circuit. You need at least a 240V / 40AMP circuit breaker for your electric sauna that is powered to 8kw and below - which is the same as an electric hot tub - and a 50AMP circuit breaker if your electric sauna heater is powered to 9kw and above.

Remember, you’ll need a certified electrician to hook up your sauna.


What do I send to my electrician to prepare for my electric sauna heater?

Your electrician will need your selected heater’s Owner’s Manual and Certificate of Compliance (Electrical Approval). You will find these documents below in the HEATERS tab. Please specify to the electrician how many kW you selected in your order.


I’m planning on building my sauna. How do I build it and how long does it take?

We’ve carefully designed our sauna kits so that it’s not majorly difficult to build your sauna. If you (or a contractor) can build a deck, then you can surely build this sauna! The sauna kit comes with written instructions as well as links for resources for video instructions. You can also find all of these resources within this tab.

The time it takes to build a sauna really varies for how long it takes you to build your sauna. Our installers typically get it done in about four hours, so it might take you about double that time for those less experienced. For two people it should take 6-8 hours, maybe over the course of a few days. We’ve had many customers tell us that it was so fun and rewarding to build their sauna!

ELECTRIC HEATERS

Start your sauna effortlessly with our selection of electric heaters, each offering unique features to enhance your experience. Please note that a 240V, 40 amp circuit breaker is necessary for installation for up to 8kw, and a 50 amp breaker is necessary for a 9kw heater. The size of the heater is automatically adjusted to the appropriate wattage based on the selected size of the sauna. The electric hookup is not included, and we advise consulting a certified electrician for an accurate installation quote. The heater will be located at the front of the sauna (next to the door), making one side of the benches shorter than the other. These benches are interchangeable, so you can install the heater on the left or right side. Adding the two windows to the front is only possible if you have a floor model, not a mounted heater, because the mounts need to be positioned where the windows would be.

Homecraft Revive Electric Heater

Homecraft Revive Electric Heater

Canadian made, the free standing (not wall-mounted) heater has a 200lb rock capacity, giving the tower design a high steam capacity. Revive has a digital remote you that’s easy to access and convenient to turn on and adjust the temperature. Stones included.


Select the option for either remote-only or WiFi control to operate the sauna from anywhere using your phone.

Notes:

  • Heater sits on the floor
  • Includes 200 lbs (90.7 kg) of sauna rocks
  • Flat floor comes free ($360 value)

Specs:

  • Dimensions: 14" W x 14" H x 36" D (35.56 cm x 35.56 cm x 88.9 cm)
  • Weight without Rocks: 40 lbs (18.14 kg)
  • Includes TKE2-2 digital wall mounted control

Huum Mini Hive Electric Heater

Huum Mini Hive Electric Heater

The Mini Hive from Huum, a trusted international brand, includes a remote control and a flat floor. With a huge 300 lb (140kg) load for rocks and a 360° surface area, it provides even heat and steam distribution. Comes with Huum's volcanic olivine diabase rounded stones. UKU wall mounted black remote included, with a built in door sensor that stops heating when the door is open for increased energy efficiency.


Select the option for either remote-only or WiFi control to operate the sauna from anywhere using your phone.

Notes:

  • Remote controlled
  • Includes 70 lbs (31.75 kg) of sauna rocks

Specs:

  • Dimensions: 18” W x 29.5" H x 18” W (46 cm x 75 cm x 46 cm)
  • Weight without Rocks: 35 lbs (16 kg)


WOOD BURNING HEATERS

Experience the timeless tradition of sauna bathing with our wood-burning stove options, designed for easy interior stoking. Each model is attached to an insulated chimney, ensuring safe and efficient heat distribution. Heat shields for floor and wall/roof included.

Chimney out the top

Narvi Wood Burning Sauna Heater

Navari Wood Burning Sauna Heater

Made in and imported from the land of Saunas: Finland. Features a glass door, look no further for a traditional sauna experience. Stones included. The stove is very easy to start.


Huum Wood Burning Stove

Huum Wood Burning Stove

Huge stone capacity for more even heat & steam distribution. The insulated metal is only 5mm thick using Huum’s patented FLAME TAMER, keeping the heat in the stones rather than in the metal. Huum’s volcanic olivine diabase rounded stones included. Interior space fits up to 14” logs. The more dense the wood is, the longer it will last.


Specs:

  • Stone capacity: 198 lbs (90 kg)
  • Height: 29 1/2" (750 mm)
  • Width: 17 3/4" (450 mm)
  • Depth: 18" (460 mm)
  • Weight: 45 kg
  • Firewood max length: 11 3/4" (300 mm)
  • Flue: 4 1/2" (115 mm)

Sauna Kit Warranty

We guarantee that your sauna will be delivered exactly as advertised, ensuring it meets your expectations for high-quality wood and luxurious comfort. Log Furniture and More warrants our Orion Saunas for 5 years against defects in materials and workmanship under normal/residential use, as applicable, from the date of receipt of the product by the original end-user consumer.

Conditions: This warranty does not apply to normal wear and tear and/or natural weather conditions. This warranty does not cover regular required maintenance of the sauna, (eg. Tightening bands on the barrels, cleaning or staining the sauna) refer to your sauna assembly manual for maintenance guidelines. This warranty does not cover misuse or negligence and the manufacturer and associated retailers are not liable for any injury or damage caused by the product. This warranty is a parts only warranty and any service or labor costs would not be considered as part of the warranty.


Sauna Heater Warranty

The buyer is obligated to read the user manual and follow the instructions and requirements presented. Damage to the product caused by not following the instructions or from improper sauna use, or tampering of the heater will void the warranty. If there are any defects on the sauna heater, where the manufacturer can be blamed, the buyer has the right to demand a replacement or repair of the product. All complaints must happen within the time period of the life of the warranty.

Warranty Terms:

  • Warranty applies only to electric heaters that have been used according to the instruction manual
  • Warranty does not cover heating elements as they are considered a consumable part
  • Warranty does not cover general wear that occurs from normal sauna use

Warranty does not apply when:

  • Product has been damaged by carelessness
  • Product has not been installed correctly
  • Product has been modified or tampered with

  • Homecraft Revive - 2 Year Warranty
  • Huum Mini Hive - 5 Year Warranty
